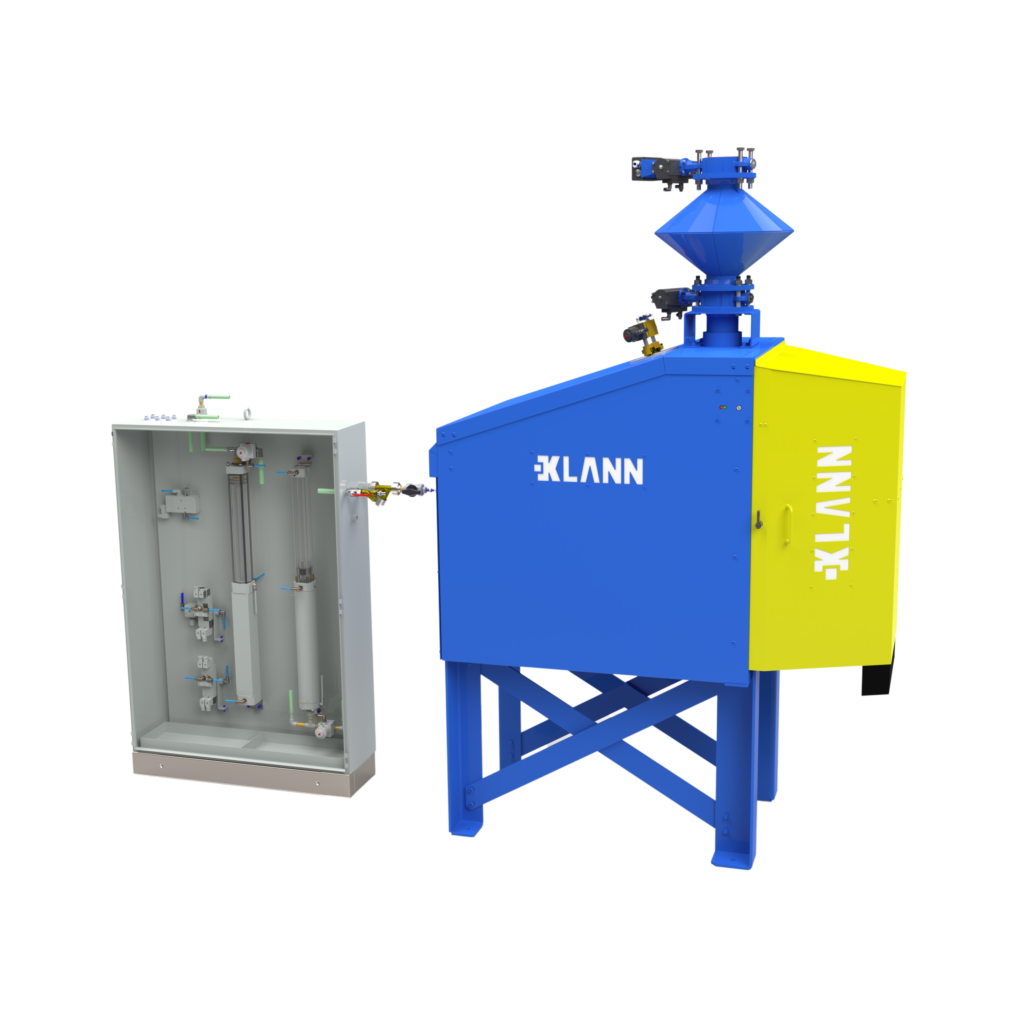

Ensuring the exact dosage of binder into the mixer is carried out using a dosing cabinet in which the individual binder components are clearly arranged. The setpoints are set via the programmable logic controller. Storage vessels and piston pumps ensure precise and bubble-free dosing into the mixer. Depending on the version, dosing accuracies of < 1% can be achieved, which guarantees high core sand quality and low binder consumption.
The systems are offered for different types of core sand, including:
Hot box
Cold Box
Resol
Inorganic
Visual monitoring of binder quality through the use of glass cylinders.
Accurate dosing thanks to adapted dosing pump sizes
Visibility of air bubbles in the binder if the pipe connection from the binder bearing is defective
Storage container for binder supply from further distances
Easily removable binder nozzles on the mixer for cleaning and calibration applications
Easy adjustment of the binder quantities through the use of distance measuring systems on the dosing system
Clear installation in a control cabinet with an integrated drip tray for leaks
Required execution even with corrosive binders
